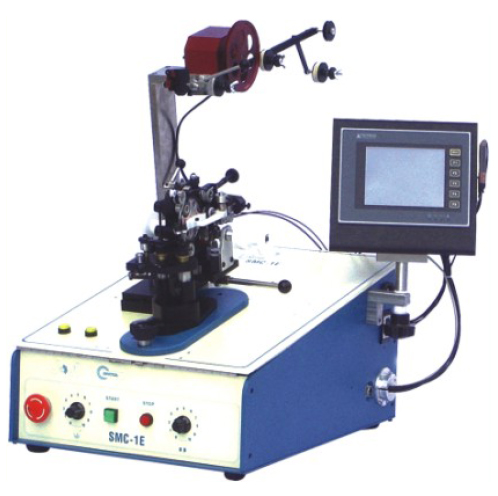

PLC CONTROLLED TOROIDAL WINDING MACHINE

Model SMC-1E

atw_1-big image

Jovil Universal is proud to preset our Precision Totoidal Winding Machine Model SMC-1E. This new model usese PLC Control Systems, which is versatile enough to store up to 240 programs. This precision winding machine encompasses a Human Machine Interface Control System which makes it a trouble free, production asset.

Designed to be multi-tasked, this user friendly machine is able to display in multiple languages. Demanding least amount of production area, at an affordable price, it has all the functions that come as a standard. An envy of its competitors, this production asset, coupled with unmatchable quality standards is prticed affordably. With the touch screen display, it is easy to operate and anyone could master it with ease within minutes.

PRINCIPAL AND OPTIONAL FEATURES

  • Separate speed controls for loading and winding
  • Programmable stepper motor driven core rotation in either direction with minimum backlash
  • Display language can be done in English and Chinese
  • Display the status in a touch screen HMI
  • PLC Control System can store up to 100 single programs, 40 multiple programs, 100 tape programs
  • Quick change winding heads, core rotators
  • Built in fiber optic turns sensor; double display, easy adjustable, utmost accurate, stable and reliable
  • Compatible to imported Jovil Winding Heads
  • Apply 1/2HP 6000RPM DC brushless motor which supplies more torque and maintenance free
  • Automatic core index function
  • Push button and footswitch controls
  • Tape head control

SPECIFICATION / CAPABILITIES

  • Maximum Wire Size: 1.4mm (#16AWG)
  • Minimum Wire Size: 0.05mm (#44AWG)
  • Maximum O.D: 101.6mm (4.00")
  • Minimum O.D: 3.26mm (0.125")
  • Minimum I.D: 1.00mm (0.040")
  • Maximum Height: 50.8mm (2.00")
  • Winding Speed: Variable to 1600TPM
  • Wire Spacing: Programmable with Controller
  • Segment Winding: Programmable with Controller
  • Progressive Winding: Programmable with Controller
  • Deceleration: Programmable with Controller
  • Acceleration: Programmable with Controller
  • Motor: Hybrid Stepper Motor
  • Power Requirement: 220V, 50/60Hz
  • Crated Dimension: 94X94X107cm
  • Crated Weight: 45Kg
